Male Thread Neodymium Pot - Diameter 12mm

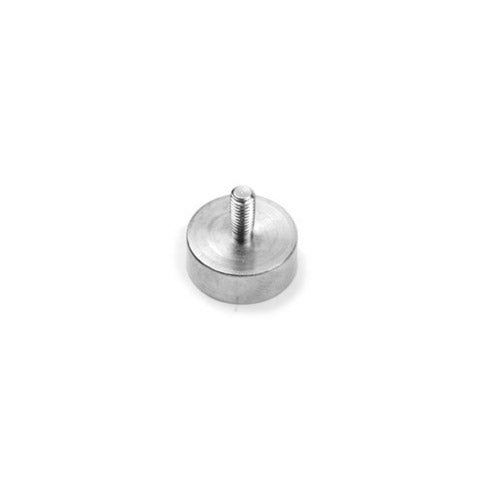

Male Thread Neodymium Pot Magnet - Diameter 12mm x 13mm

Regular price: $2.38
Sale price: $2.38
Regular price
Unit price: per

Quantity must be 1 or more

=====================

Production Flow Diagram

Demagnetization Curves

Surface Treatment

Range and Tolerance

2020-05-23

55 months ago

=====================

Fishing Magnets

This Signage Display Frame is a great Marketing tool for any retail store,

59 months ago

Fishing Magnets

This Signage Display Frame is a great Marketing tool for any retail store,

59 months ago

Fishing Magnets

This Signage Display Frame is a great Marketing tool for any retail store,

59 months ago

Magnetic Product Description:

This rare earth male threaded pot magnet has a diameter of 12mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a M3 thread with an external boss of 8mm. This male threaded magnet has a pull force of 3.2kg and a weight of 5 grams. It is identified by the AMF magnet part number AMFYPC12.

Uses for our Rare Earth male thread pot magnets:

Our Male Threaded Holding Pot magnets are simple to attach to any other material using a washer and nut. A strong Neodymium magnet is set into a mild steel cap with a protruding male boss that can be used to screw into timber and plastic or any other non-ferrous material which can then be magnetically adhered to a metal surface. A common application for these pot magnets is to attach screens, partitions or coverings to metal structures or framework. The steel cap serves to protect the inner magnet from damage such as chipping or cracking whilst also enhancing the magnetic field through the operational face of the magnet.
