Male Thread Neodymium Pot - Diameter 10mm

Male Thread Neodymium Pot Magnet - Diameter 10mm x 12mm

Regular price: $1.67
Sale price: $1.67
Regular price
Unit price: per

Quantity must be 1 or more

=====================

Production Flow Diagram

Demagnetization Curves

Surface Treatment

Range and Tolerance

2020-05-23

55 months ago

=====================

Fishing Magnets

This Signage Display Frame is a great Marketing tool for any retail store,

59 months ago

Fishing Magnets

This Signage Display Frame is a great Marketing tool for any retail store,

59 months ago

Fishing Magnets

This Signage Display Frame is a great Marketing tool for any retail store,

59 months ago

Magnetic Product Description:

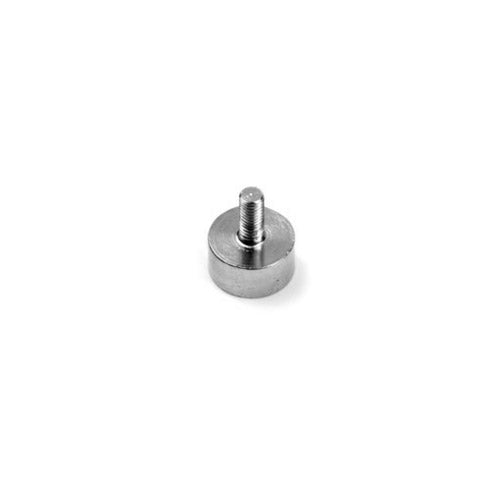

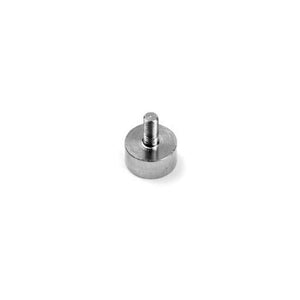

This rare earth male threaded pot magnet has a diameter of 10mm, a total height of 12mm and a magnet housing thickness of 5mm. It has a M3 thread with an external boss of 7mm. This male threaded magnet has a pull force of 2.2kg and a weight of 3 grams. It is identified by the AMF magnet part number AMFYPC10.

Uses for our Rare Earth male thread pot magnets:

This Holding Pot magnet has a strong Neodymium magnet in a mild steel cap with a protruding male boss. The steel cap serves to protect the inner magnet from damage whilst also enhancing the magnetic field through the working face of the magnet. The field curves around the inside of the cap and is projected from the active face of the magnet whilst reducing the field on the reverse side. This creates an effectively single-sided magnet that is highly desirable in some applications. The male thread can be easily attached to a non-ferrous material using a nut and washer to secure the magnet in position. Likewise, the magnet can be integrated into a larger mechanical apparatus with a female threaded receptacle.
