Female Thread Neodymium Pot Magnet - Diameter 25mm x 17mm
Product code: AMFYPD25
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Female Thread Neodymium Pot Magnet - Diameter 25mm x 17mm
Magnetic Product Description:

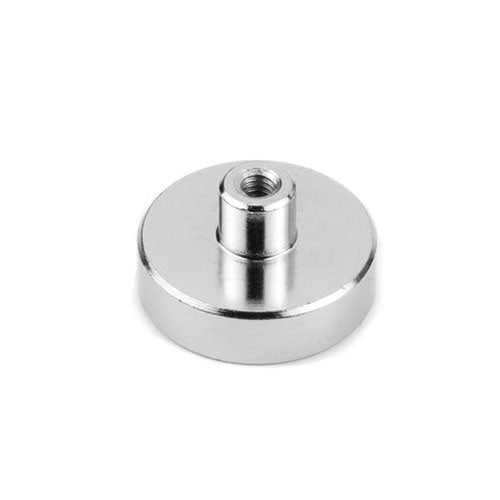

This rare-earth female threaded pot magnet has a diameter of 25mm, a total height of 17mm and a magnet housing thickness of 8mm. It has a 5mm female thread with an external boss of 10mm. This female threaded magnet has a pull force of 22kg and a weight of 32 grams. It is identified by the AMF magnet part number AMFYPD25.
Uses for our rare earth female thread pot magnets:
Pot magnets use strong Neodymium magnets that have a sturdy steel cap on one side that protects the magnet, and at the same time, redirects more magnetic field to the holding surface on the uncapped base. This makes them ideal for holding applications. These Neodymium Pot magnets have a Female Thread that allows them to be attached to any surface with a bolt. It also allows attachment of useful accessories like hooks and eyelets that make handy metal retrieval tools. Pot magnets connect ferrous materials to non-ferrous material using a magnetic bond. They allow any material to be suspended from metal in an easy to release manner that can be easily re-positioned or relocated when need be.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 |
5 | 17 | 8 |
22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
